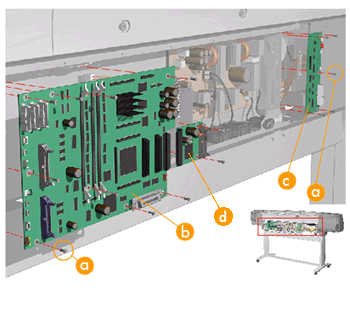

ISS PCA and main PCA

		screw
		0515-2200

		main PCA
		(DJ 5000 series) C6090-60012
		main PCA
		(DJ 5500 series) Q1251-60030

		ISS PCA
		(includes ISS PCA cable) C6090-60041

		PCI-to-IDE PCA
		C6090-60318
