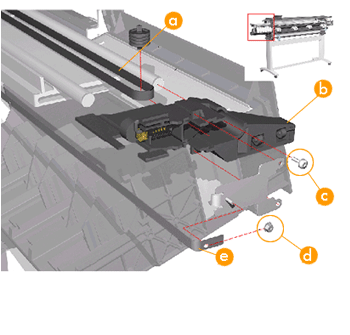

Tensioner Assembly and Encoder Strip

		belt
		(60" model) C6095-60183
		belt
		(42" model) C6090-60072

		tensioner assembly
		(includes pulley assembly, pulley spring, wedge and actuator arm) C6090-60088

		screw
		0515-2248

		nut
		0535-0031

		encoder strip
		(60" model) C6095-60265
		(42" model) C6090-60267

		washer
		3050-0026
