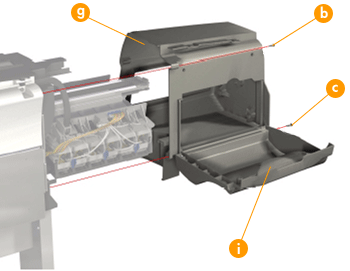

Left Hand Cover and rear door

		Left Hand Cover
		(includes door) C6090-60039

		Screw
		0624-0771

		Screw
		0515-4268

		Left Hand Trim
		C6090-60042

		Screw
		0624-0771

		Screw
		0515-2248

		Rear Door
		C6090-60040

		Nameplate PS
		(DJ 5000 series) C6091-00139
		(DJ 5500 series) Q1252-00003
		Nameplate RTL
		(DJ 5000 series) C6095-00116
		(DJ 5500 series) Q1251-00017
		Matchprint InkJet Proofer 5042 Nameplate
		(DJ 5000 series) C6090-00235
		(DJ 5500 series) —
		Matchprint InkJet Proofer 5060 Nameplate
		(DJ 5000 series) C6090-00220
		(DJ 5500 series) —
		Matchprint InkJet Proofer 5542 Nameplate
		—
		Matchprint InkJet Proofer 5560 Nameplate
		—
		EagleJet
		—

		Left Hand Back Door
		C6090-60040

		Adobe PS3 Logo
		—

		Pantone certified Logo
		—

		HP Technology Logo
		C6090-00244
