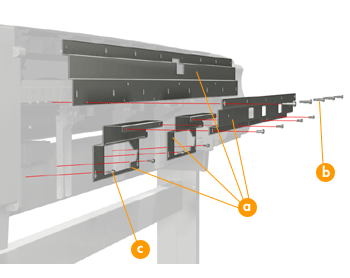

EMC Covers

		EMC Covers (DJ 5000 series)
		(60" Model) C6095-60190
		EMC Covers (DJ 5500 series)
		(42" Model) C6090-60180

		screw

		(center to bottom and top) 0515-0382

		screw
		(bottom to chassis) 0515-2248

		mount bracket
		(includes right, left and center) C6090-60107

		screw
		(for each bracket) 0515-2248

		screw
		(top to chassis) C6071-20026
