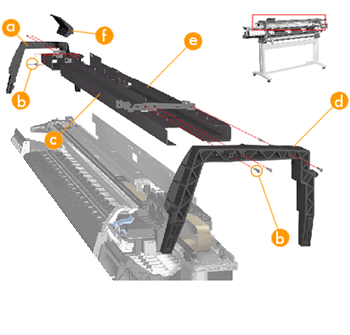

tubes guide assemblies

		left are assembly
		C6072-60192

		screw

		0624-0771

		front tube guide assembly
		(60" model)(includes tube guide door and spring) C6095-60269
		front tube guide assembly
		(42" model)(includes tube guide door and spring) C6090-60271

		right are assembly
		C6072-60193

		back tube guide assembly
		(60" model) C6095-60176
		back tube guide assembly
		(42" model) C6095-60078

		tube guide door
		(includes spring) C6090-60272
