10.2 Others >>> IO Information
This option allows you to view the information relating to the IO.
View the IO Information as follows:
1. In the Service Tests submenu, scroll to "10. Others" and press Enter.
2. In the Others submenu, scroll to "10.2 IO Information" and press Enter.
3. The Printer will start to initialize and the Front Panel will display the following
messages:
If there is a failure at this point, the Front Panel will display System Error Code 74:00.
If no active interface is found, the Front Panel will display "No active
interface found. Press any key to finish".

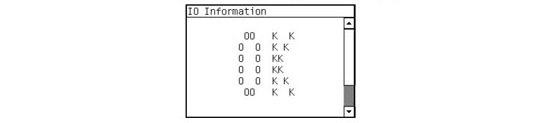

4. Once the IO information is obtained, it is displayed on the Front Panel. Press any key to exit.
5. Once the process is completed, OK will be displayed on the Front Panel.
 |
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
