media deflector wires



	Switch the printer, scanner and the PC OFF, and disconnect them from the power source prior to performing any maintenance.



			1. Remove the » Top Cover



			2. Remove the » Guide Plate



			3. Remove the » Glass Plate



			4. Remove the » Left Cover



			5. Remove the » Entry Roller Shield



			6. Remove the » Exit Roller Shield



			7. Remove the » Rollers



			8. Remove 2 screws that secure the Media Sensor Bracket. Remove the Media Sensor Bracket.



			9. Loosen the Allen Screw that secures the Shutter Plate. Remove the Shutter Plate.



			10. Loosen the screw that holds the Torsion Spring. Remove the Torsion Spring.



			11. Loosen the screws from the bearings that secure the Media Detector Wires.



			12.Remove the Media Detector Wires from the scanner.

Installation:

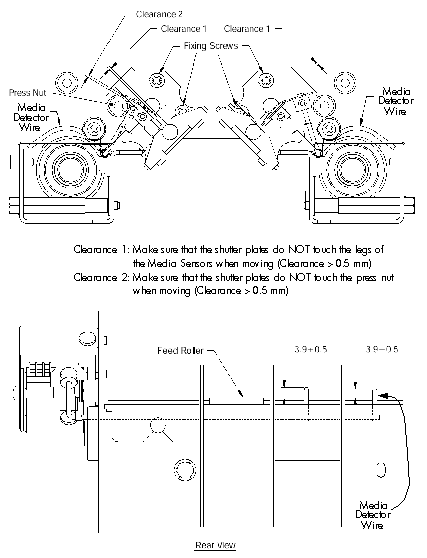

When installing the Media Detector Wires, make sure you achieve the following tolerances:
