carriage belt



	Switch off the product and remove the power cable.


			1. Remove the Center Cover

			2. Remove the Right End Cover

			3. Remove the Electronics Module

			4. Remove the Power Supply Unit

			5. Remove the Service Station

			6. Remove the Ink Supply Tubes

			7. Remove the Carriage Assembly

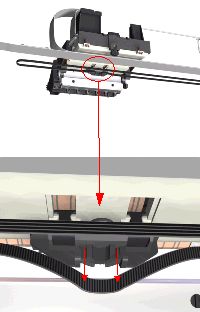

			8. Release the Belt from the bottom of the Carriage Assembly.
