WARNING:
Switch off the printer and remove the power cable.
1. Make sure
the Media Lever is in the UP Position.

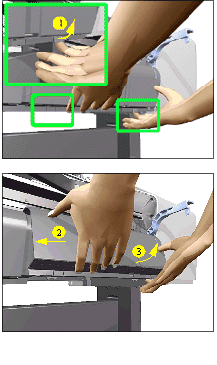

2. Lift both
tabs up and slide Right Deflector to the left and
lift up.
NOTE: Please note that in some printers, the Right Deflector
Bracket does not exist. In this case, the new Right Deflector (which
has a new design) needs to be modified by breaking the hook at the
bottom right hand side (which if installed will interfere with the
Pinch-Arm Sensor.
3. Lift tab
up and slide Middle Deflector to the right and lift
up.
4. Lift tab up and slide
Left Deflector to the right and lift up.
NOTE: In some printers, the Left
Deflector is secured to the Deflector Holder with 2 screws. In this
case you MUST remove these 2 screws before performing step 4.
5. Remove all
the Deflector Holders from the Printer and install new
ones (that are in the Media Deflector kit).
