Ink Supply Station (ISS) PCA



WARNING: Switch off the Printer and remove the Power Cord.


  1. Remove the LAN Card

      2. Remove the Left Rear Cover



3. Remove the Right Rear Cover

      4. Remove the Electronics Module Cover

      5. Disconnect ALL Cables from the ISS PCA (see installation of ISS PCA for connections).

    6. Disconnect the PCA Power Supply connector from the Main PCA.

    7. Remove the plastic protective cover from the Power Supply Unit.



Installation of the ISS PCA

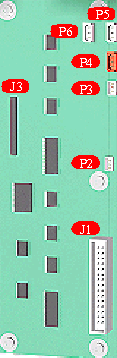

NOTE: The ISS PCA connections are illustrated below.



NOTE: The Power Supply Unit connections are illustrated below.




J Position
Connection
Connector Color
P Position
Connection
Connector Color
J1
ISS Cable
white
P2*
Ink Leak Detector
white
J3
Main PCA
white
P3
APS Temperature
white

P4
APS Valve
red

P5**
APS Pump
white

P6**
APS Pump (Spare)
white

* The Ink LeakDetector has been discontinued so this connector is no longer used.
** There are 2 connectors available for the APS Pump and any one of them can be used.
